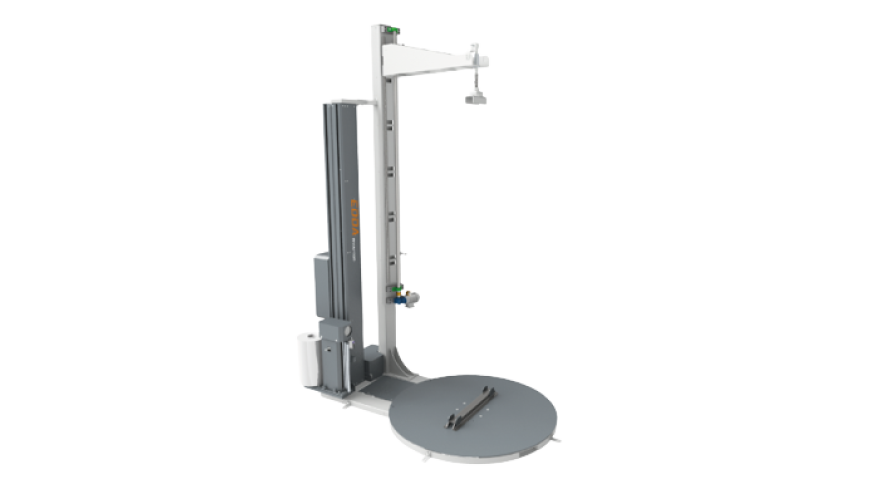

Wraptor TP 1650 VPT 3000

Wraptor TP 1650 VPT 3000



MACHINE GENERAL FEATURES
Table Diameter mm/inch Ø1650
Table Turning Speed rpm 2-10
Forklift Lifting Place   Front
Electric Supply Volt-Hz 220 Volt - 50/60 Hz Monophase
Total Power kW 1,2
Tensioning System   Motorized Pre-Stretching
Tensioning Rate % 0 - 250
Speed Adjustment   Available

315/16’’ x 45/64’’ x 235/8’’
FILM ROLL FEATURES
Film Width mm/inch 500

7121/32’’
Max. Roll Diameter mm/inch Ø 250

7847/64’’
Max. Roll Weight kg 16

3515/32’’
Roll Inner Diameter mm/inch Ø 76

3515/32’’
PACKING PRODUCT DIMENSIONS
Max. Dimensions (W x D) mm/inch 1300 x 1100
Max. Height  mm/inch 3000
Loading Capacity kg 2000
MACHINE DIMENSIONS
Height mm/inch 3835
Width mm/inch 1650
Depth mm/inch 2660
