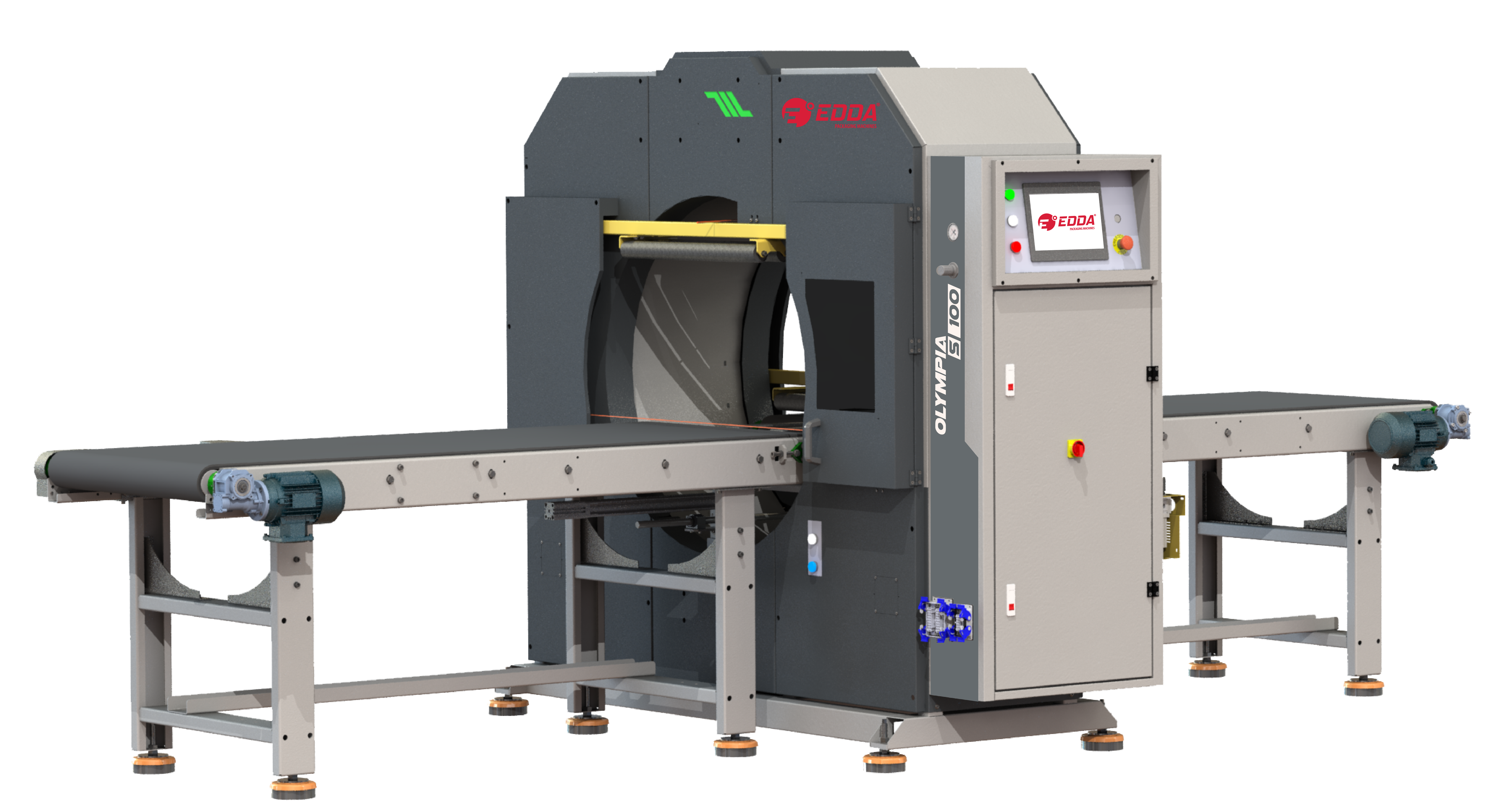

OLYMPIA 100 S

OLYMPIA 100 S
...



PRODUCT TO WRAP SIZES
Max. Lenght   Unlimited
Min. Dimensions (W x H x L) mm/inch 100 x 18 x 600*

315/16’’ x 45/64’’ x 235/8’’
CONVEYOR BELT’S FEATURES
Useful Lenght mm/inch 1924

 753/4 ’’
Total Lenght mm/inch 2000

7847/64’’
Working Height mm/inch 915

351/2’’
Electric Motor Power kW 0,37
Max. Conveyor Speed meter/min. 12
Max. Load Capacity kgs/meter 100
STRETCH FILM FEATURES
Max. Width mm/inch 170

 611/16’’
Max. Diameter mm/inch Ø 230

91/16’’
Reel Core Diameter mm/inch Ø 76

263/64’’
Recommended Thickness micron 23, 30, 35
MACHINE GENERAL FEATURES
Main Motor Power kW 1,5
Max. Ring Rotation Speed rpm 85
Min. Ring Rotation Speed rpm 20
*Electric Supply Volt - Hz 380 Volt - 50/60 Hz - 3P+1N+1G
Total Power kW 4,2
Standard Machine Dimensions (W x H x L) mm/inch 1920 x 2200 x 4350

75529/32’’ x 8669/64’’ x 175029/32’’
Total Weight kg 800
