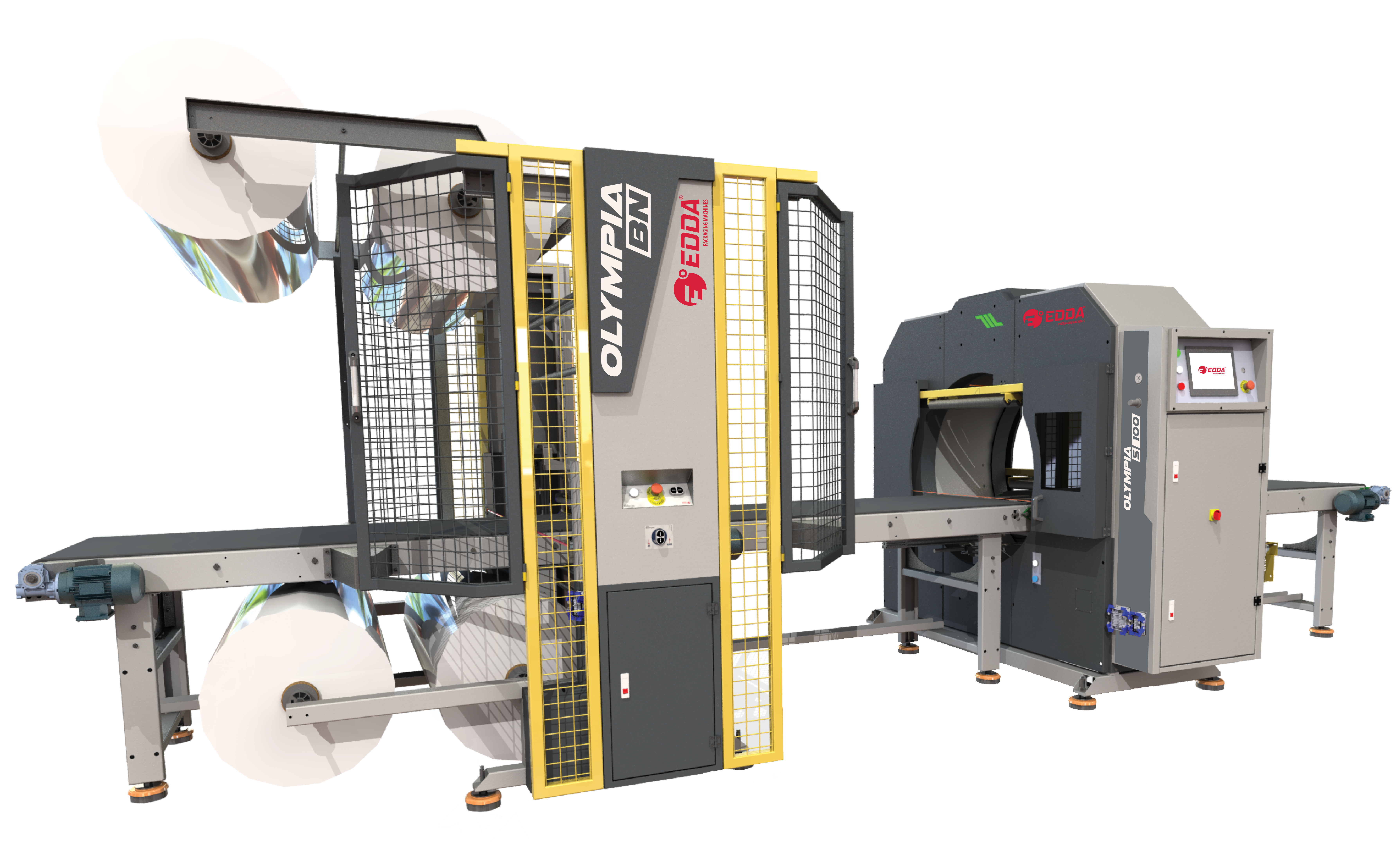

OLYMPIA 100 S BN ←
| PRODUCT TO WRAP SIZES | |||
| Max. Lenght | Unlimited | ||
| Min. Dimensions (W x H x L) | mm/inch | 100 x 18 x 600* |
315/16’’ x 45/64’’ x 235/8’’ |
| CONVEYOR BELT’S FEATURES | |||
| Useful Lenght | mm/inch | 1924 |
753/4 ’’ |
| Total Lenght | mm/inch | 2000 |
7847/64’’ |
| Working Height | mm/inch | 915 |
351/2’’ |
| Electric Motor Power | kW | 0,55 | |
| Max. Conveyor Speed | meter/min. | 12 | |
| Max. Load Capacity | kgs/meter | 100 | |
| STRETCH FILM FEATURES | |||
| Max. Width | mm/inch | 170 |
611/16’’ |
| Max. Diameter | mm/inch | Ø 230 |
91/16’’ |
| Reel Core Diameter | mm/inch | Ø 76 |
263/64’’ |
| Recommended Thickness | micron | 23, 30, 35 | |
| MACHINE GENERAL FEATURES | |||
| Main Motor Power | kW | 1,5 | |
| Max. Ring Rotation Speed | rpm | 85 | |
| Min. Ring Rotation Speed | rpm | 20 | |
| *Electric Supply | Volt - Hz | 380 Volt - 50/60 Hz - 3P+1N+1G | |
| Total Power | kW | 4,2 | |
| Standard Machine Dimensions (W x H x L) | mm/inch | 2395 x 2200 x 6350 |
9419/64’’ x 8639/64’’ x 250’’ |
| Total Weight | kg | 1600 | |
| AIR BUBBLE FILM UNIT | |||
| Max. Film Width |
mm/inch |
800 |
311/ 2 ’’ |
| Max. Film Reel Diameter | mm/inch | Ø600 |
235/ 8 ’’ |
| Reel Core Diameter | mm/inch | Ø20 ~ Ø76 |
25/ 32’’ ~ 263/ 64 ’’ |
| Cutting & Welding System Operating Temperature | C | 50 ~ 150 | |
| Suitable Film Materials | PE Film, PE Air Bubble Film, PVC Film |
