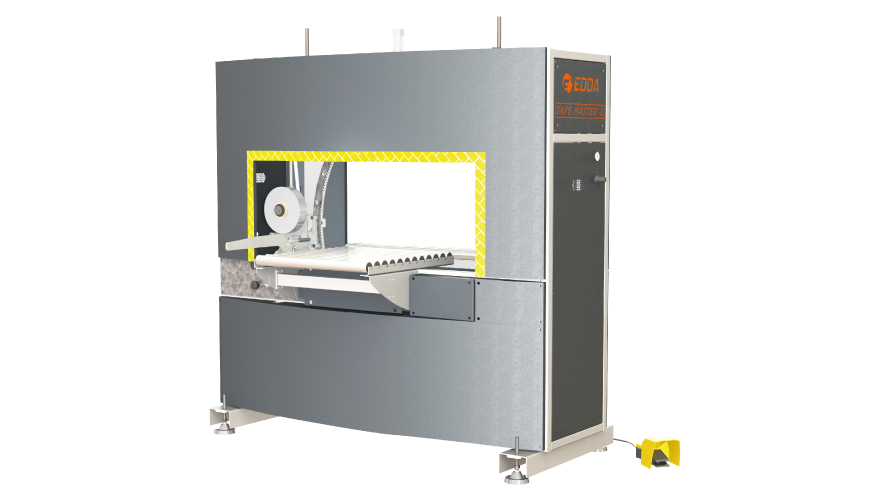

TAPEMASTER L ←
| PRODUCT TO TAPE DIMENSIONS | |||
| Max. Width x Height | mm/inch | 1270 x 320 | |
| Min. Width x Height | mm/inch | 500 x 50 | 1015/64’’ x 105/8’’ |
| Min. Length | mm/inch | 400 |
23/4’’ x 45/64’’ x 393/8’’ |
| ROLLER TABLE’S FEATURES(INFEED & OUTFEED) | |||
| Length | mm/inch | 700 |
3713/32’’ |
| Working Height | mm/inch | 1000 |
4111/32’’ |
| Loading Capacity | kg | 100 |
367/32’’ |
| ADHESIVE TAPE FEATURES | |||
| Tape Width | mm/inch | 45 - 65 |
611/16’’ |
| Max. Tape Roll Diameter | mm/inch | Ø250 |
91/16’’ |
| Tape Roll Core Diameter | mm/inch | Ø 76 |
263/64’’ |
| MACHINE GENERAL FEATURES | |||
| Total Power | kW | 1,1 | |
| Ring Rotation Speed | rpm | 28 | |
| Average Cycle Time | seconds | 6 | |
| *Electric Supply | Volt - Hz | 380 Volt - 50/60 Hz - 3P+1N+1G | |
| Required Compressed Air | Bar | Min. 6 | |
| Air Consumption | Lt/Cycle | 8 |
6263/64’’ x 6533/64’’ x 1081/32’’ |
| Standard Machine Dimensions (W x H x L) | mm/inch | 1980 x 2152 x 1540 | |
| Total Weight | kg | 570 |
