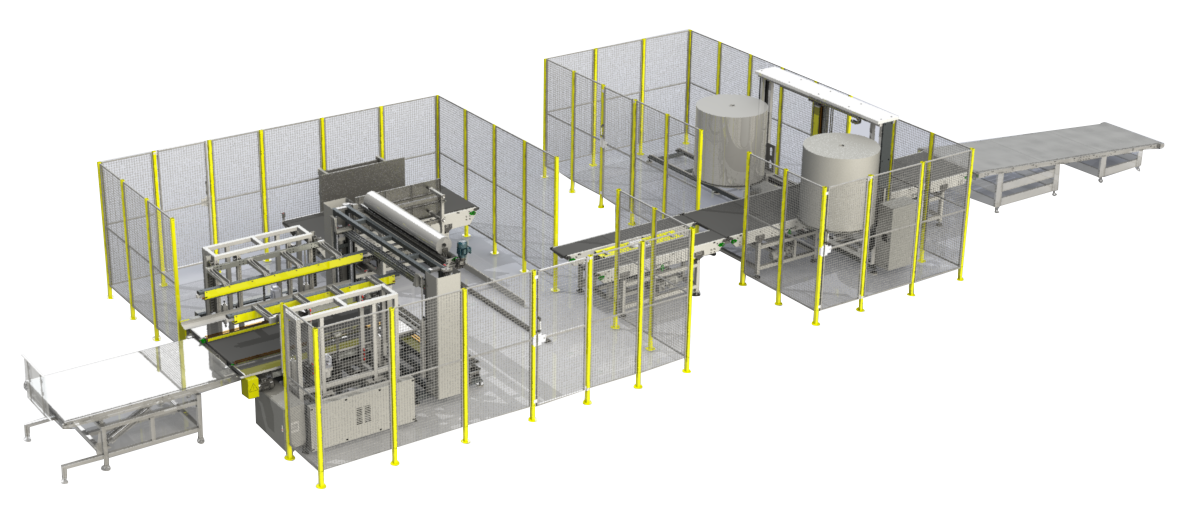

Artemis

Artemis



PRODUCT TO TAPE DIMENSIONS
Max. Lenght   Unlimited
Min. Dimensions (W x H x L) mm/inch 1300 x 1200 x 3000

513/16’’ x 471/4’’ x 11835/8’’
CONVEYOR BELT’S FEATURES
Useful Lenght mm/inch 3950

7121/32’’
Total Lenght mm/inch 4000

7847/64’’
Working Height mm/inch 850

3515/32’’
Electric Motor Power kW 0,75
Max. Conveyor Speed meter/min. 12
Max. Load Capacity kgs/meter 200
MACHINE GENERAL FEATURES
Main Motor Power kW 18,5
*Electric Supply Volt - Hz 380 Volt - 50/60 Hz - 3P+1N+1G
Total Power kg 6750 / 1125 (Optional)
