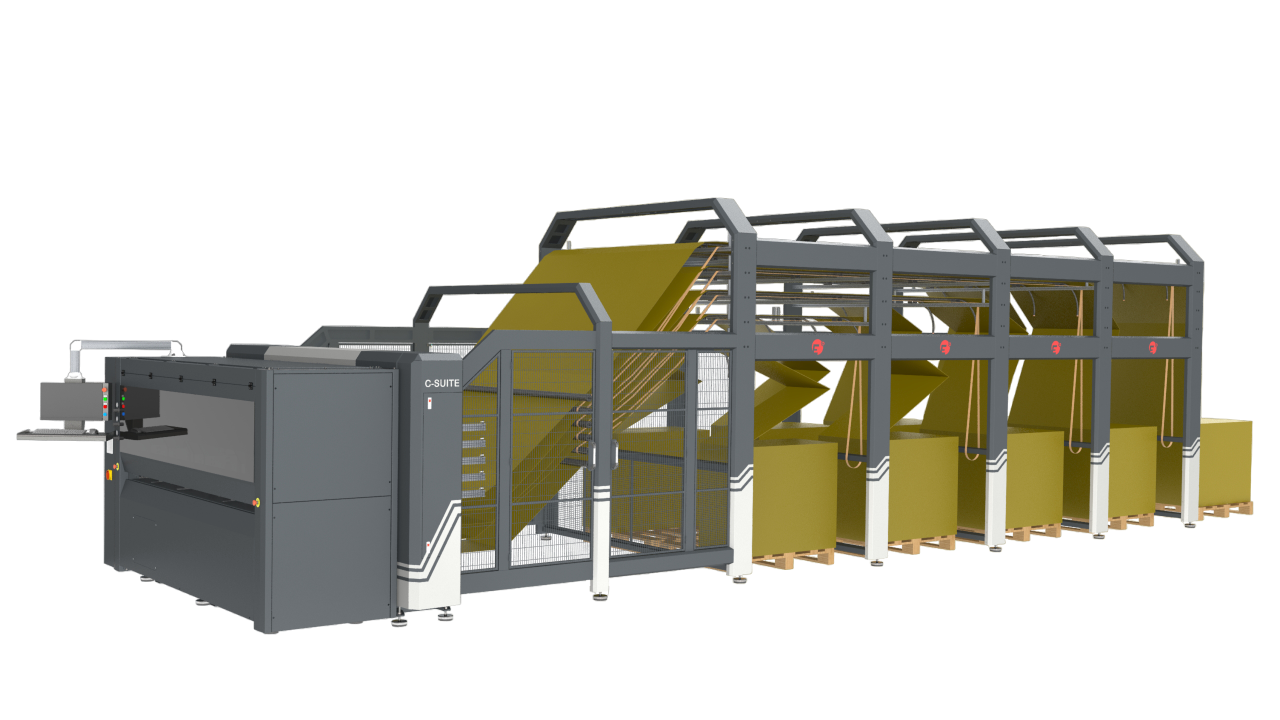

C - SUITE

C - SUITE



MACHINE GENERAL FEATURES
High Axis Speed  m/dk 3m / dk
Cardboard Width  mm/inch Min. 400 mm ÷ Max. 2.500 mm 15 3/4’’ -  98 27/64’’
Magazin Section
There are 1 to 5 magazine options
available. Each magazine consists
of 2 sections.

Suitable Cardboard Thickness mm/inch 2 - 7 mm   5/64’’ -  9/32’’
*Electric Supply  Volt - Hz 220 Volt - 50/60 Hz Monophase
Compressed Air Bar 6 - 7 Bar
Total Servo Motor Power kW 0,75 kW
Total Weight  kg 1200 kg


Standart Machine Dimensions ( W x H x L )  mm 3605 x 3385 x 10375

*110 Volt 50/60 Hz Monophase (optional)
